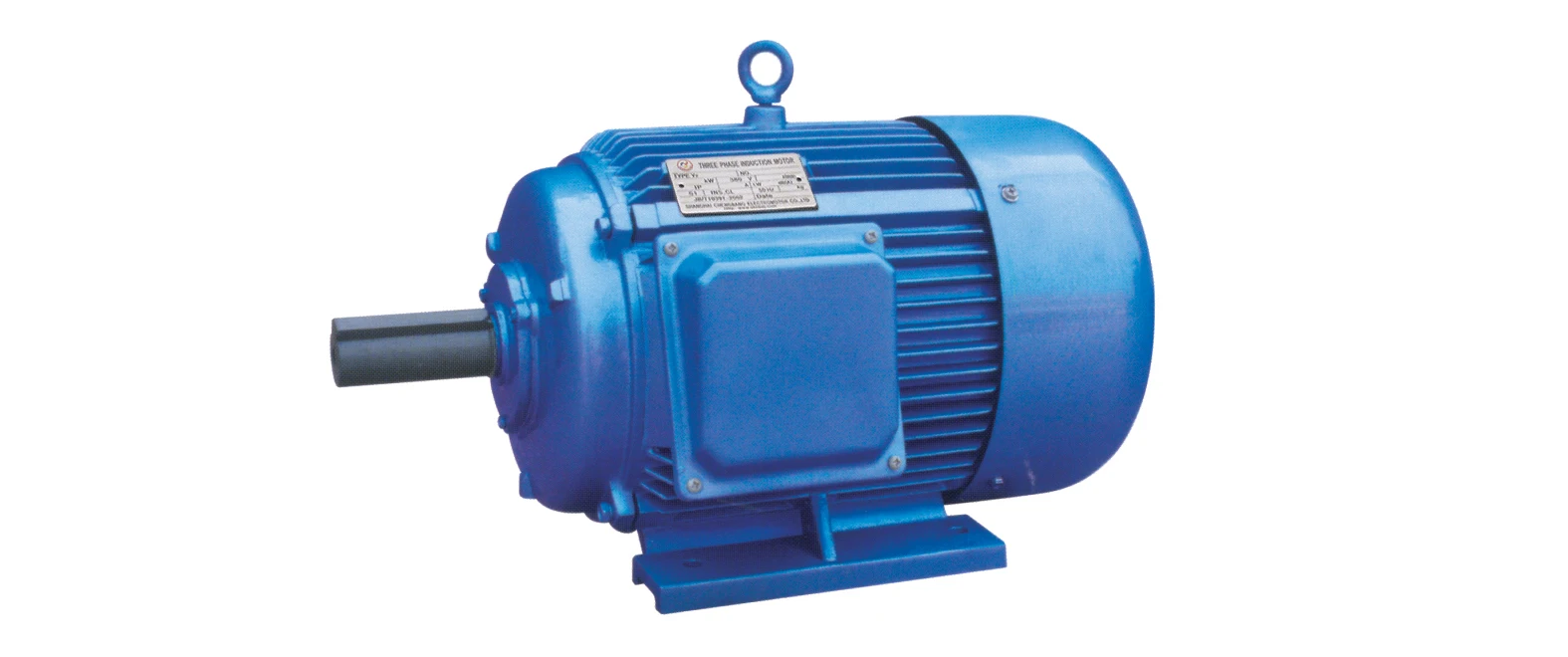

motor for rice mill

Brand:

Price:

a Set of

119.00

1 + a Set of

< >

Color:

Size:

Quantity:

- + a Set of

Total Price:

Depends on the product properties you select

Inquire Now

< >

Quick Details

Supply Ability

Packaging & Delivery

Products Description

Brand Name	JULANTE

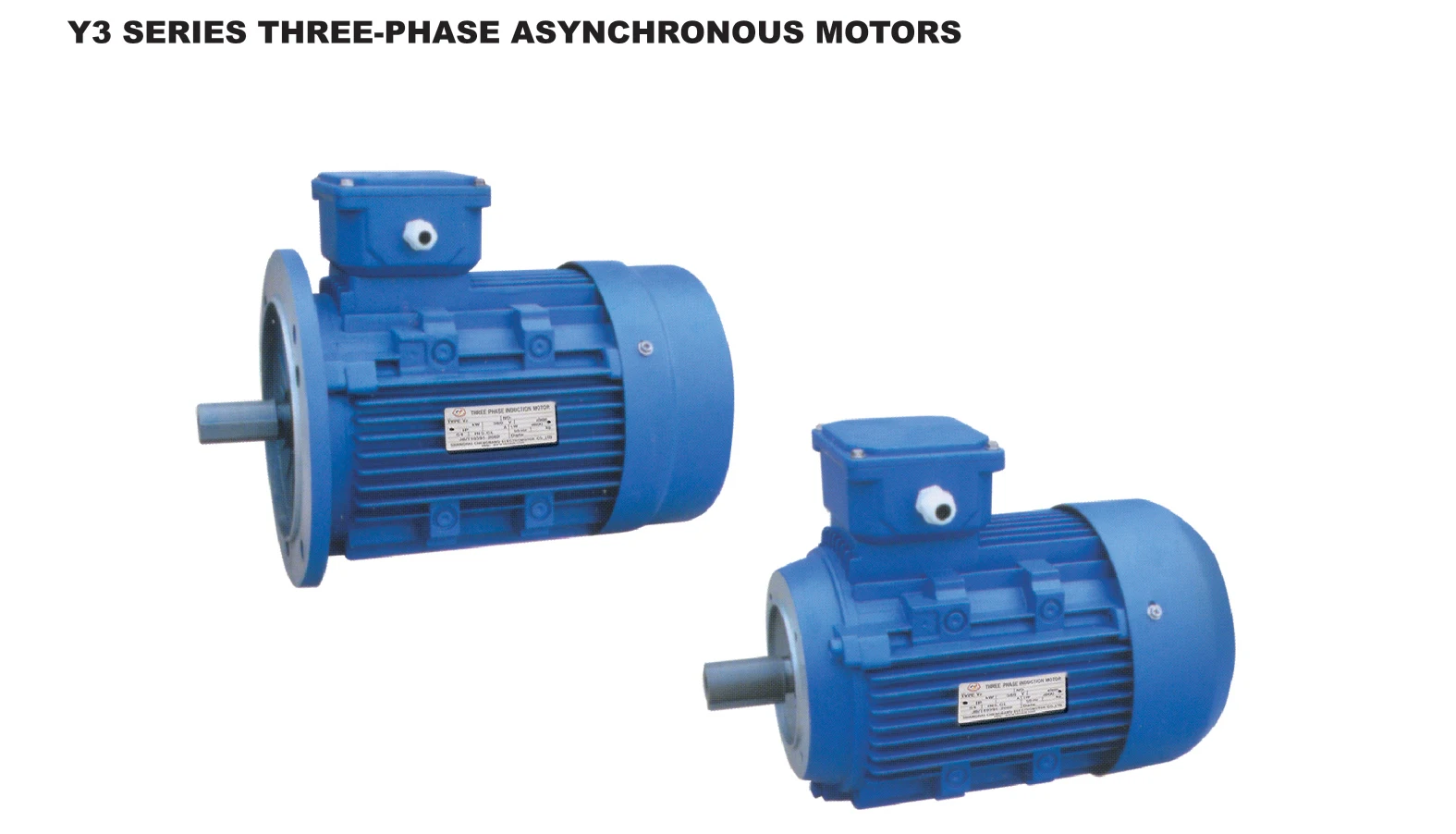

Model Number	Y Y2 Y3 YT
Type	AC Motor
Frequency	50Hz/60Hz
Output Power	0.18kw-315kw
Phase	Three-phase
Certification	CE, CCC, ISO9001
Rated voltage	380V
Efficiency	IE1,IE2,IE3
Series	Y2 Series Motor
Frame	Cast Iron or Aluminum
Poles	2, 4, 6, 8,10
Ambient temperature	-15° ℃ ≤0 ≤ 40 ℃
Altitude	1000 Meters
Duty	Continuous(S1)
Insulation Class	Class B/F
Protection Class	IP44/IP54/IP55
Cooling Method	IC0141 (total-enclosed fan-cooled type)
Price	USD
Minimum Order Quantity	20 Piece/Pieces, USD
Packaging Details	Foam,carton and plywood . We can pack according to your requirement .
Delivery Time	15-25 days after received the payment
Payment Terms	L/C,T/T
Supply Ability	10,000 Piece/Pieces per Month
Materials	cast iron(63-355), aluminum (FRAME 63-160)

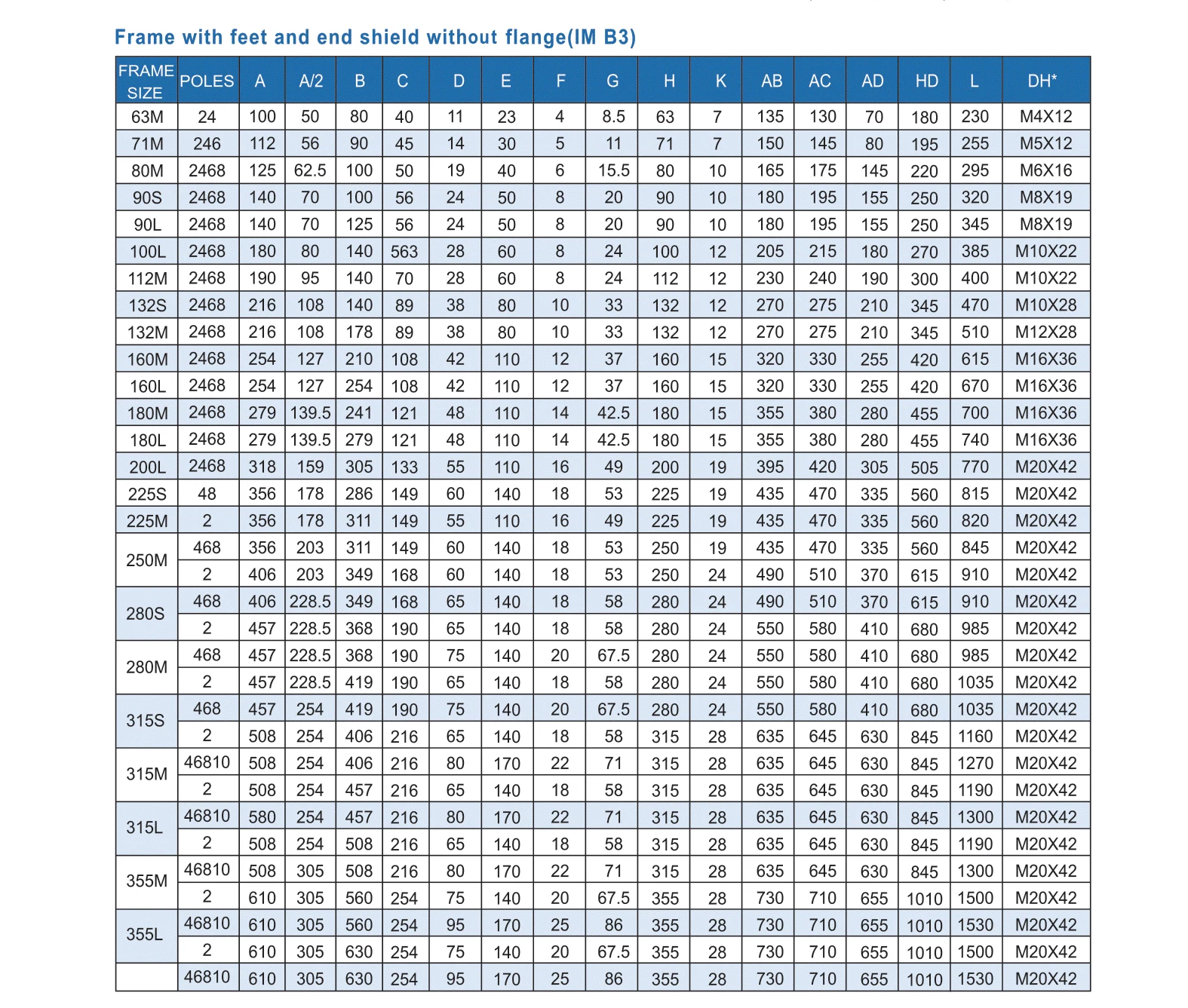

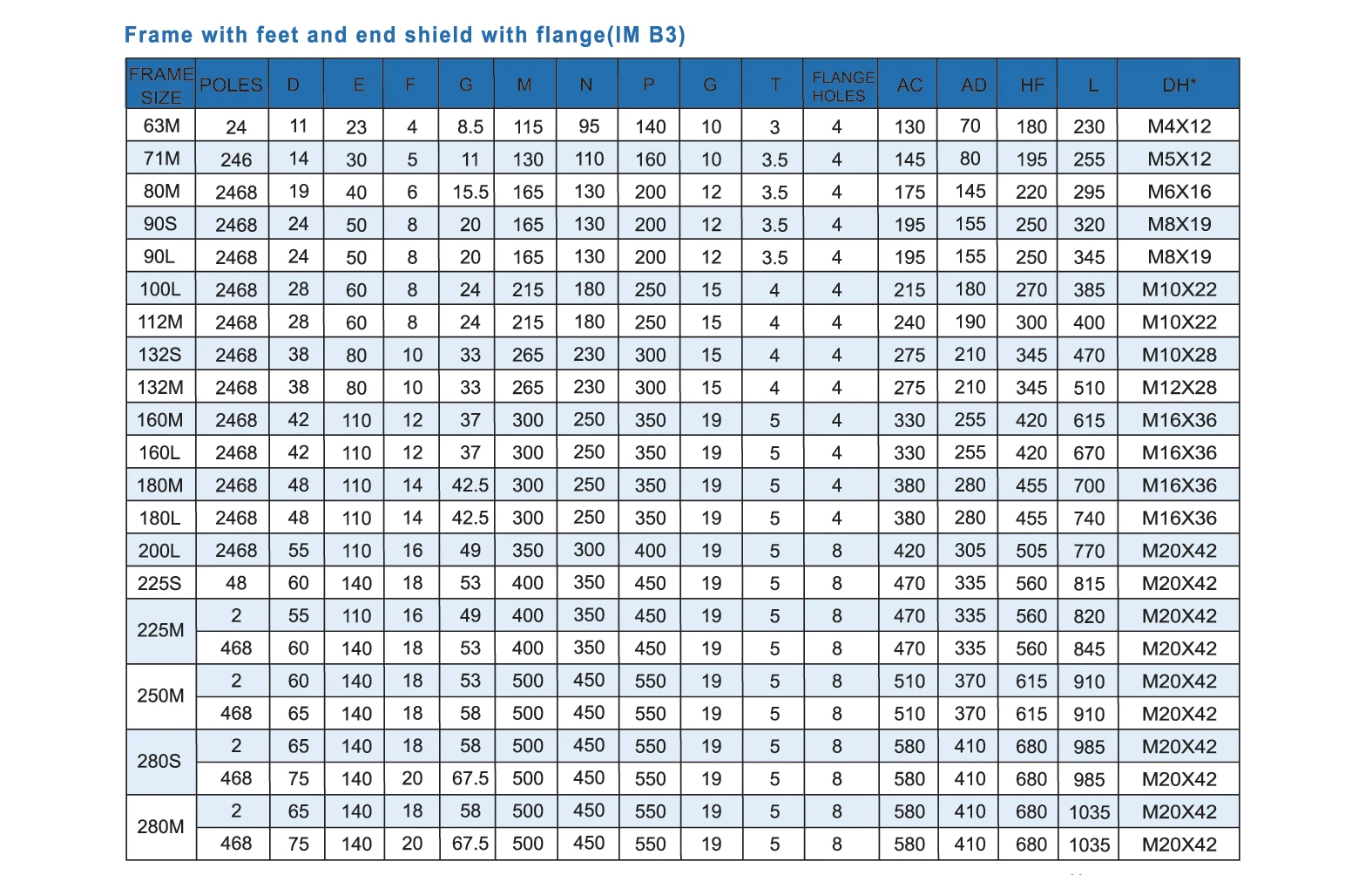

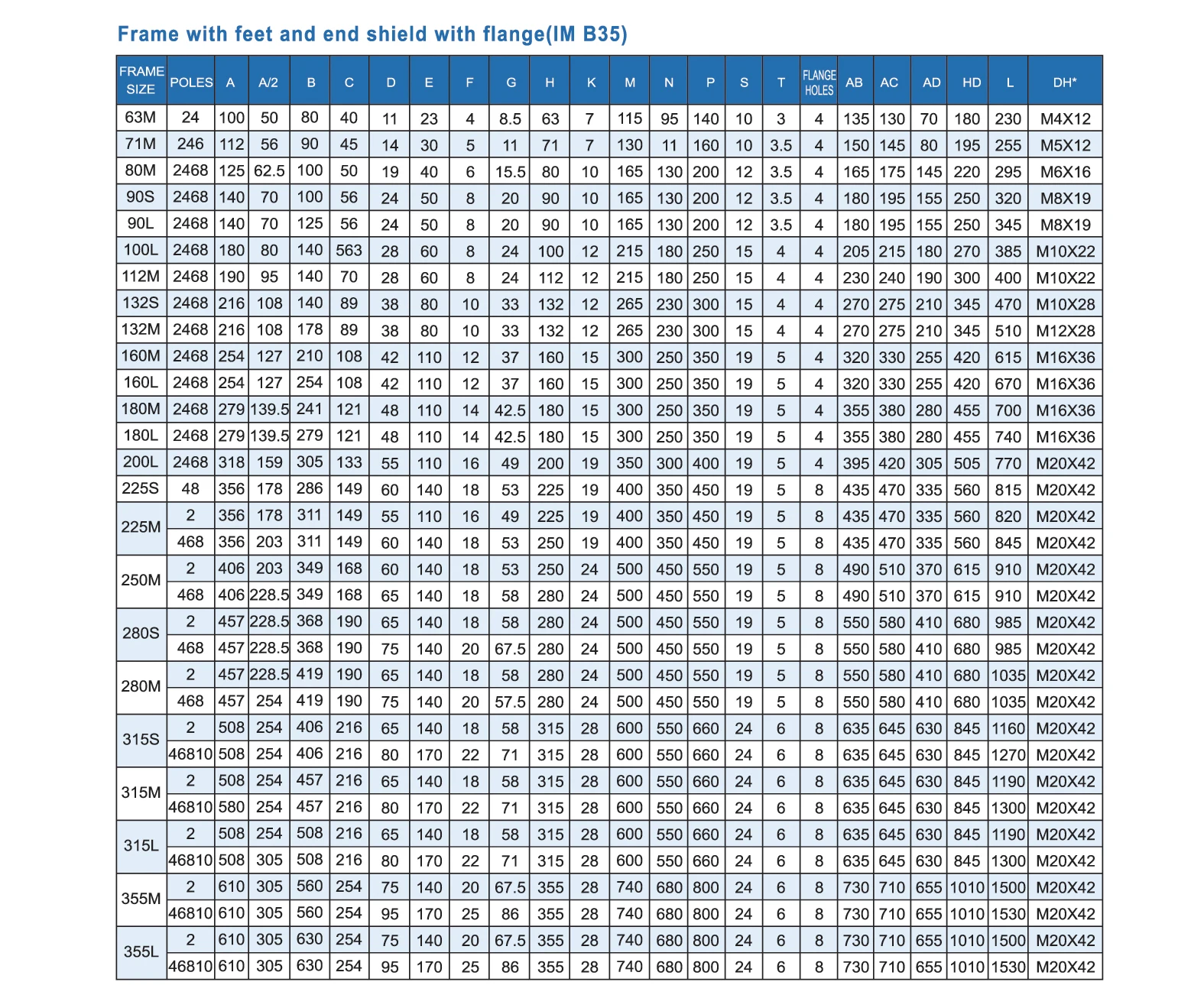

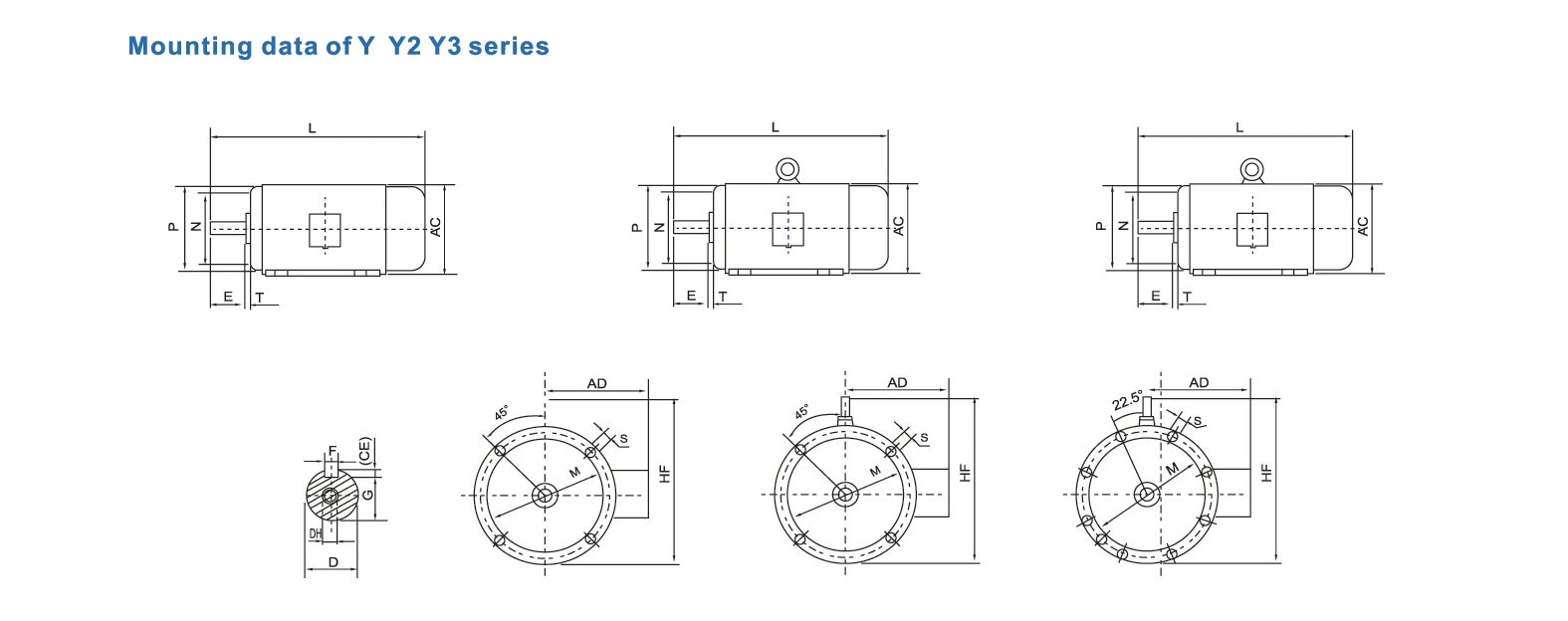

Mounting types	IMB3, IMB5,IMB35
Connection	"Y" type for 3kW and downwards, "D" type for 3kW and upwards
Relative humidity	not higher than 90%
Special motors can be designed according to customers' requirements
