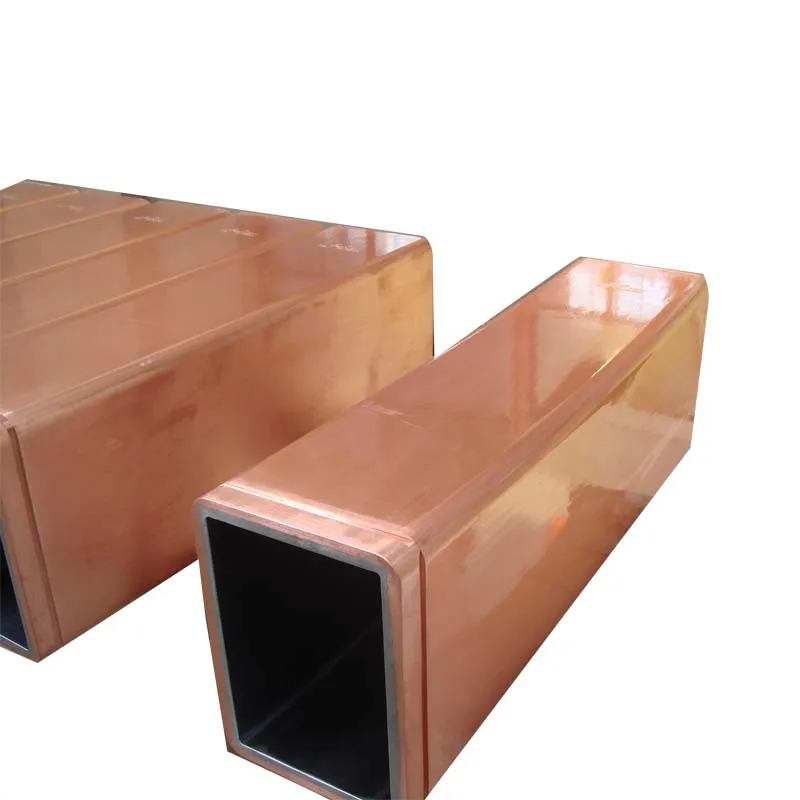

R6m 120*120mm Copper mould tubes/plates for CCM

Brand:

Price:

pieces

900.00

3 + pieces

< >

Color:

default

Size:

default

Quantity:

- + pieces

Total Price:

Depends on the product properties you select

Inquire Now

< >

Product Details
Supplier Detail

ccm copper tube:

At peresnt,Deoxidized phosphorus copper(TP2),Silver-bearing copper(CuAg0.1)

and Cu-Cr-Zr are normally selected as the material to produce copper mould tubes

Application:

widely used for molten steel cooling and CCM.

To offer billet, round and bloom sized continuous casting machine and related spare parts.

Arc radius can be from 3.5m to 14m.

The strand can be 1-6.

Kinds of billet type continuous casting machine: 60mmX60mm to 700mmX700mm, of round one from Φ80mm to Φ900mm, of slab one from 120mmX850mm to 3600mmX1000mm

Name	Size(mm)	Arc radius(mm)	Thickness(mm)	Length(mm)

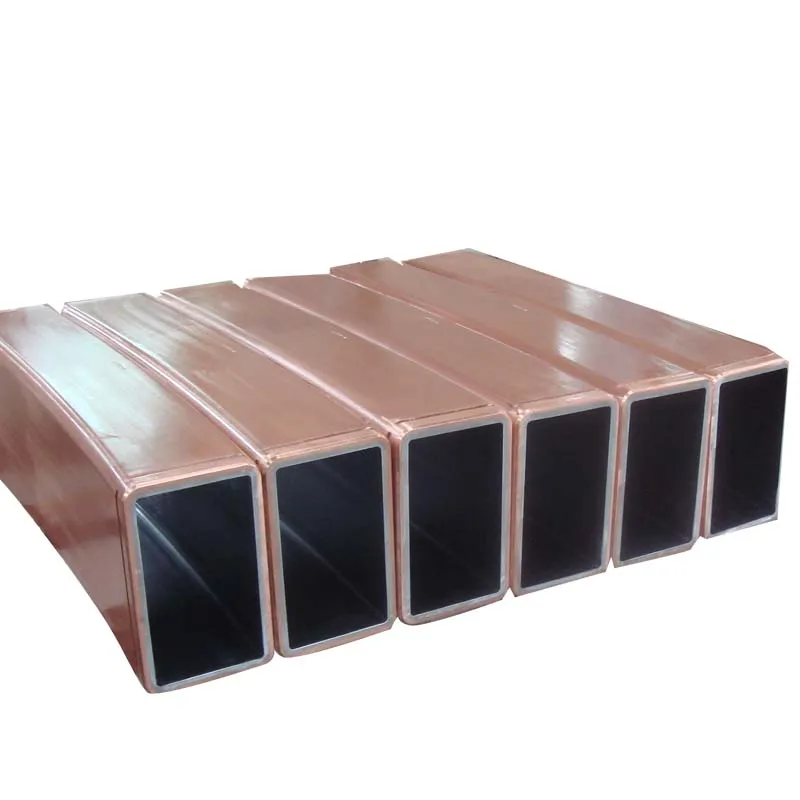

Square Copper tube	7070~500500	4000-12000	6~30	800-1000
Rectangular copper tube	(100~500)*650	4000-12000	6~30	800-1000
Round copper tube	Diameter110~1000	4000-12000	10~30	800-1000

R6m 120*120mm Copper mould tubes/plates for CCM

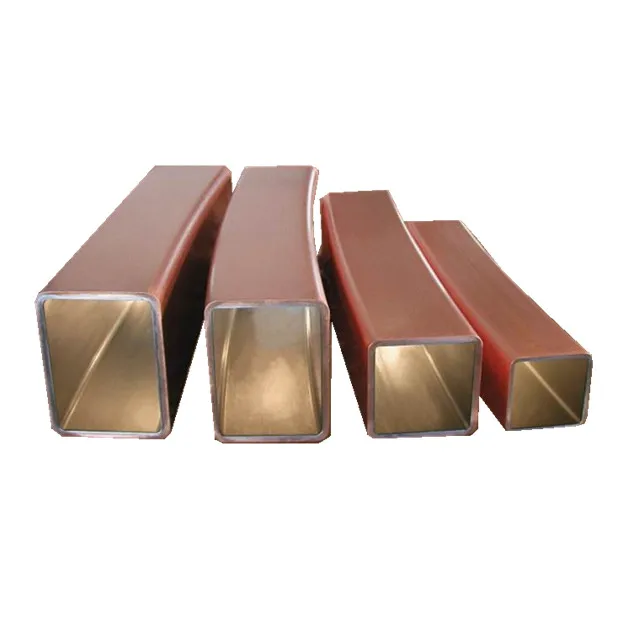

square round copper mould tubes for continuous casting machine

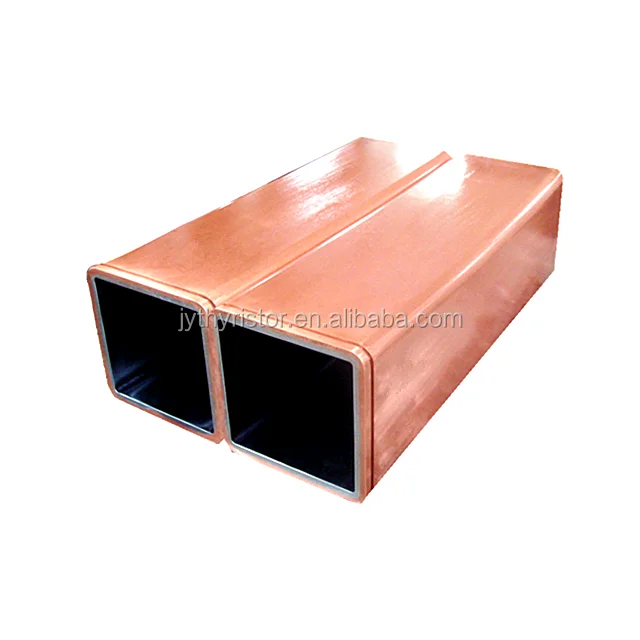

COPPER MOULD TUBE

Description

Copper mould tube is for mould of continuous casting machine (CCM) .

molten steel casting directly inside the copper tube mould ,in the copper tube pulling billet continuous cooling molding, in order to solve the working process of the copper pipe and the cooling problem of solidified shell sometimes touching and sometimes isolated .Copper mould tube material requirement is good thermal conductivity, recrystallization high temperature, thermal fatigue, high strength, good abrasion resistance, long service life.

Type of copper tube

Copper mould tube type : Single tapered tubes; Double tapered tube ; Multi dimension ; Parabola;Raised Face ;Diamond-type .Straight type; Funneltype;Circular type;Super-huge type;(Customized according to customer's requirements)

Product list
Specification of copper tube	6060; 7070; 8080; 9090; 9595; 100100; 110110; 120120; 130*130
	135135; 140140; 143143; 150150; 160160; 165165; 180180; 200200;
	220220; 100170; 130240; 150225; 160235; 165225; 175225; 180200;
	180220; 200240
	φ100;φ120;φ150;φ160;φ180;φ210;φ230;φ250;φ300;
	φ400;φ510;φ600
Length of coppe tube	660;700;750;780;790;800;810;812;850;900;1000
Radius of continuoue casting	2500; 3500; 4000; 4700; 5000; 5250; 6000; 6500; 7000; 7500; 8000; 9000; 11000;12000
Copper tube type	Single tapered tubes; Double tapered tube ; Multi dimension ; Parabola;Raised Face ;Diamond-type
Special specification	Straight type; Funneltype;Circular type;Super-huge type; (Customized according to customer's requirements)
The specification below is only for refference. Please provide us the basic specification. We will find you best products with best price in short time.
