Sensor KTM12-DL

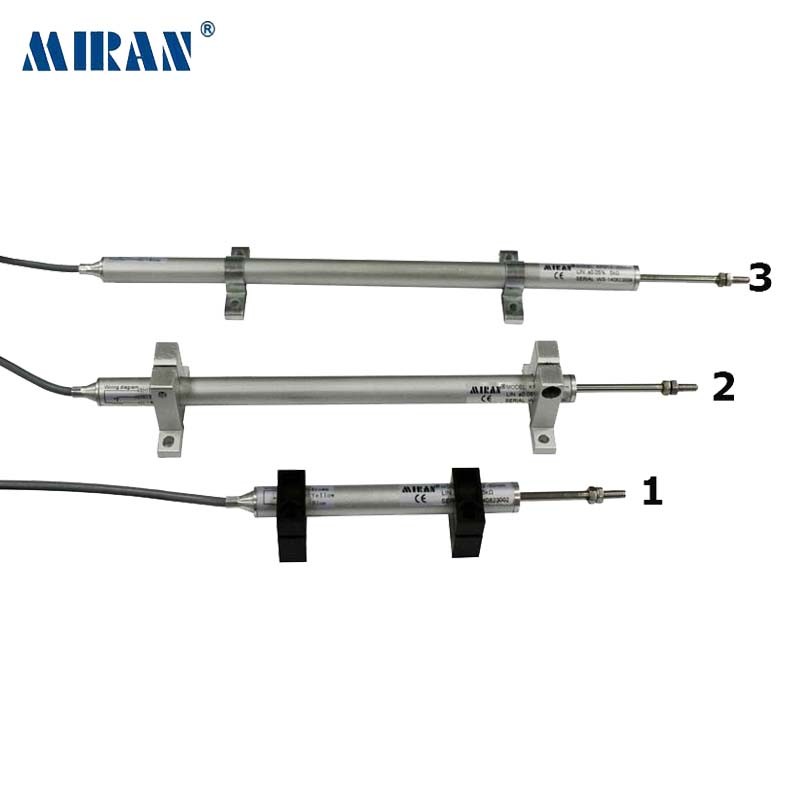

KTM miniature pull rod type displacement sensor (alias: electronic ruler, resistance ruler, potentiometer, displacement sensor) Principle: potentiometer principle, all sensors are position measurement type, used in the adjustment system (control system) and measurement system, to the displacement and The length is directly measured, and the DC voltage signal is output. The signal can also be converted into a standard 0-5V, 0-10V or 4-20mA DC signal through the external V/A transmission module, and it can also be used for remote transmission of control requirements. KTM miniature pull rod type displacement sensor (alias: electronic ruler, resistance ruler, potentiometer, displacement sensor) output displacement change: 0-100% of the given input working voltage (changes with the change of displacement).

Universal drawbar conductive plastic film miniature series, effective stroke 10mm～300mm, both ends have 2mm buffer stroke. The surface of the shell is anodized to prevent corrosion; built-in carbon film line board measuring unit, no temperature drift, long life; with automatic electrical grounding function. The sealing grade is IP67, and there are two options for direct outlet and five-pin plug socket output. It can be applied to most general occasions, especially for occasions with small installation space; the tie rod ball head has 0.5mm automatic centering function, allowing extreme movement speed It can reach 5m/s.

Remarks: The product is equipped with 1 meter noodles, and the fixing bracket is specially fixed. The line boards are all repaired and engraved by the computer, which is high-precision and wear-resistant.
