Features
. Reverse voltages up t0 1800 V
. Hermetic metal case with glass
insulator
. Threaded stud ISO M16 x 1,5
. SKN / SKR 240/04 ... /16 also
available with threaded stud
3/4 - 16 UNF (e.g.
SKR 240/12 UNF)
. SKN: anode to stud,
SKR: cathode to stud
Typical Applications*
. All-purpose mean power rectifier
diodes
* Cooling via heatsinks
. Non-controllable and
half-controllable rectifiers
. Free-wheeling diodes
. Recommended snubber network
RC: 0,5 pF, 30 Q (P R = 2W),
Rp = 50Ω (P R = 20 W)

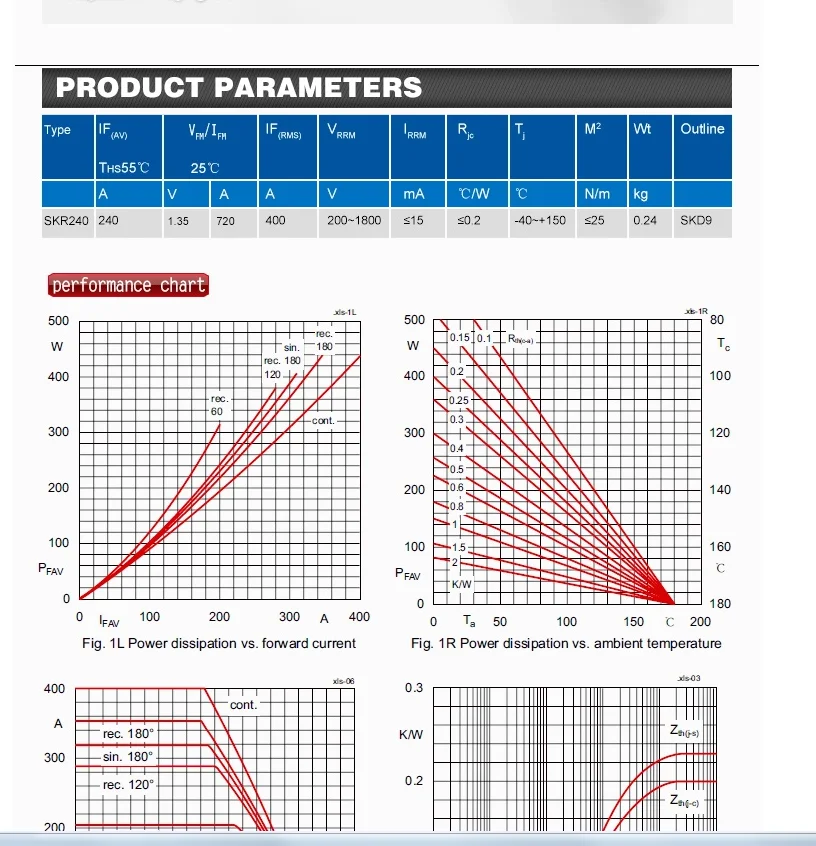

VRSM V | VRRM V | IFRMS = 500 A (m aximum value for conti nuous operation) IFAV = 240 A (sin. 180; Te = 1 25 °C ) |
400 | 400 | SKN 240/04 SKR 240/04 |
800 | 800 | SKN 240/08 SKR 240/08 |
1200 | 1200 | SKN 240/12 SKR 240/12 |
1400 | 1400 | SKN 240/14 SKR 240/14 |
1600 | 1600 | SKN 240/16 SKR 240/16 |
1800 | 1800 | SKN 240/18 SKR 240/18 |
