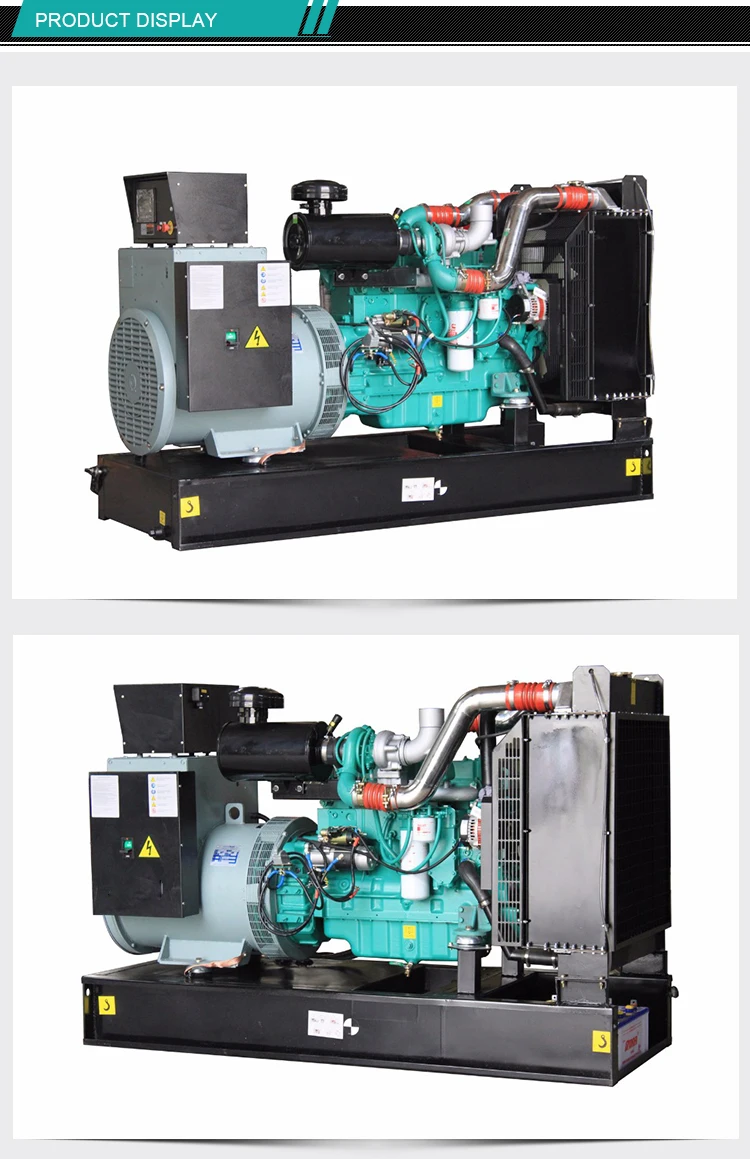

Durable Bank Use 200 Kva Generator powered by 6CTAA8.3-G2 engine

Genset Technical Parameters :

Genset Model

JKDG-160GF

Steady-state Voltage Regulation Rate

≤±0.5%

Rated Power

160KW

Transient Voltage Regulation Rate

≤±15%

Rated Power Factor

COSΦ=0.8 (lag)

Voltage Fluctuation Rate

≤±0.5%

Rated Output Voltage

400V/230V

Voltage Waveform Distortion

≤5%

Rated Current

288A

Electricity Pressure Stabilization Time

≤1.5s

Rated Frequency/Speed

50Hz/1500r

Steady-state Frequency Adjustment Rate

≤±2%

Start-up Control Mode

Electric Start

Transient Frequency Adjustment Rate

≤±5%

Full-load Fuel Consumption

207g/kw/h

Frequency Stabilization Time

≤ 3s

Fuel Brand

0 # light diesel

Frequency Fluctuation Rate (%)

≤±0.5%

Lubricant Brand

(Standard) SAE 15W/40

Noise (LP1m)

100dB (A)

Profile Size (mm)

2400*970*1500

Weight

1700KG

Diesel Engine Technical Parameters:

Brand

DCEC

Cooling Mode

Closed Water Circulation

Engine Model

6CTAA8.3-G2

Type

Four Strokes, Exhaust Gas Turbocharger, Direct Injection Compression Ignition

Power

203KW

Lubricant Capacity

24L

Cylinder Number

4/In-line

Speed Regulation Mode

 Electronic Speed Regulation

Exhaust Volume

8.3L

Cylinder Diameter* Travel

114mm*135mm

Start Mode

DC24V Electric Starting

Speed

1500rpm

Alternator Technical Parameters:

Brand

Stamford   (Customized)

Protection Level

IP22

Model

P11441

Connection Mode

Three-phase, Four-wire, Y Connection

Rated Power

184KW

Regulation Mode

AVR (Automatic Voltage Regulator)

Rated Voltage

400V/230V

Output Frequency

50Hz

Insulation Level

H Class

Excitation Mode

Brushless Self-Excitation Magnetism
