Quick Details
Place of Origin:
Hubei, China
Brand Name:
JKD
Model Number:
JKDG-200GF
Rated Voltage:
400V/230V
Rated Current:
360A
Speed:
1500r
Frequency:
50Hz
Product Name:
200kw electric generator powered by 6LTAA8.9-G3 engine
Type:
Silent(super Silent)or Open
Alternator:
Stamford/Siemens/Leroy-comer/Wattek
Engine:
DCEC Diesel Engine
Control panel:
Deepsea / Harsen / Smartgen 6110
Cooling method:
Water-cooling System
Phase:
3 Phase 4 Wire
Color:
Customized
Warranty:
1 Year
Factor of rated power:
0.8
Supply Ability
1000 Set/Sets per Month
Product Description
Technical Specification and Parameters of 200KW DCEC Diesel Genset | |||
Genset Technical Parameters : | |||
Genset Model | JKDG-200GF | Steady-state Voltage Regulation Rate | ≤±0.5% |
Rated Power | 200KW | Transient Voltage Regulation Rate | ≤±15% |
Rated Power Factor | COSΦ=0.8 (lag) | Voltage Fluctuation Rate | ≤±0.5% |
Rated Output Voltage | 400V/230V | Voltage Waveform Distortion | ≤5% |
Rated Current | 360A | Electricity Pressure Stabilization Time | ≤1.5s |
Rated Frequency/Speed | 50Hz/1500r | Steady-state Frequency Adjustment Rate | ≤±2% |
Start-up Control Mode | Electric Start | Transient Frequency Adjustment Rate | ≤±5% |
Full-load Fuel Consumption | 207g/kw/h | Frequency Stabilization Time | ≤ 3s |
Fuel Brand | 0 # light diesel | Frequency Fluctuation Rate (%) | ≤±0.5% |
Lubricant Brand | (Standard) SAE 15W/40 | Noise (LP1m) | 100dB (A) |
Profile Size (mm) | 2600*970*1500 | Weight | 2000KG |
Diesel Engine Technical Parameters: | |||
Brand | DCEC | Cooling Mode | Closed Water Circulation |
Engine Model | 6LTAA8.9-G3 | Type | Four Strokes, Exhaust Gas Turbocharger, Direct Injection Compression Ignition |
Power | 250KW | Lubricant Capacity | 28L |
Cylinder Number | 4/In-line | Speed Regulation Mode | Electronic Speed Regulation |
Exhaust Volume | 8.9L | Cylinder Diameter* Travel | 114mm*145mm |
Start Mode | DC24V Electric Starting | Speed | 1500rpm |
Alternator Technical Parameters: | |||
Brand | Stamford (Customized) | Protection Level | IP22 |
Model | P11441 | Connection Mode | Three-phase, Four-wire, Y Connection |
Rated Power | 220KW | Regulation Mode | AVR (Automatic Voltage Regulator) |
Rated Voltage | 400V/230V | Output Frequency | 50Hz |
Insulation Level | H Class | Excitation Mode | Brushless Self-Excitation Magnetism |

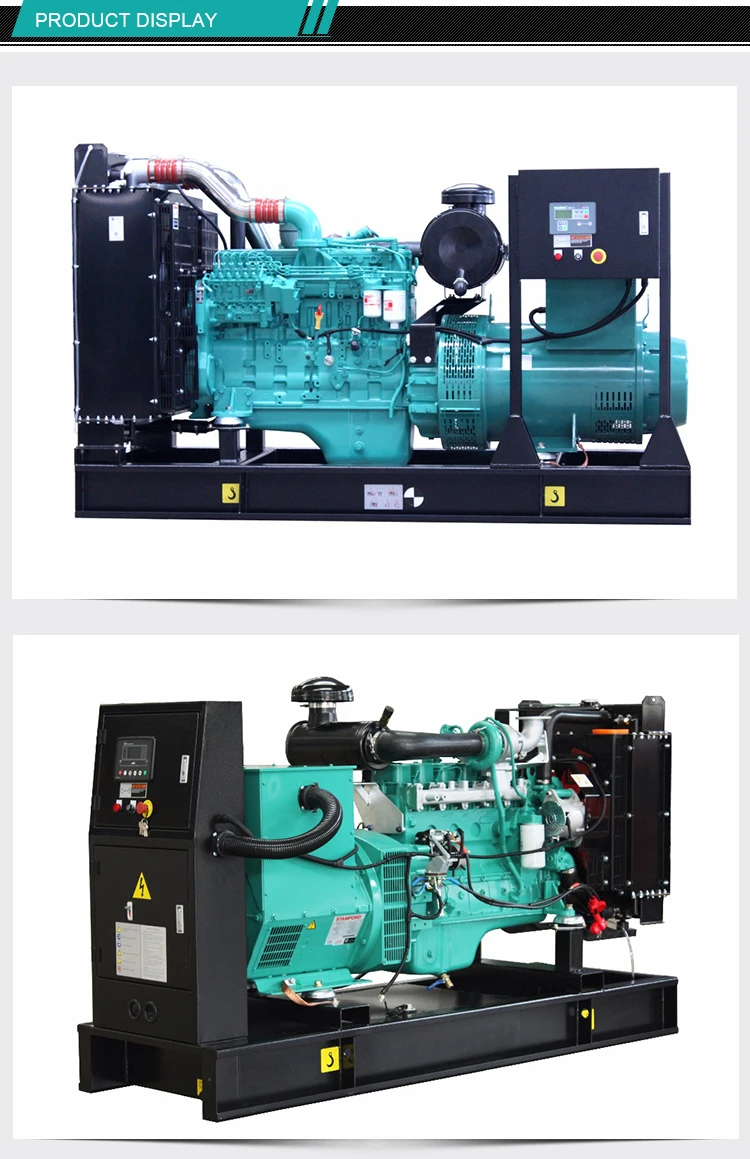

Product Display
Application
